Ram Promaster 159" WB Conversion Van Kit
- Steel-framed, factory-built, ships assembled
- Slides into your van and installs in under 1 hour
- Free ground shipping to the lower 48 states
Made to order. $5,000 deposit starts production.
Balance due when kit is complete and ready to ship. 6–12 week lead time.
What's Included in Every Kit
Your kit arrives assembled. Every module listed below ships fully built and ready to install.
Sleeping Module
Convertible sofa that opens to a full 74.80" x 50.2" bed, spanning the full van width just above the wheel arch.

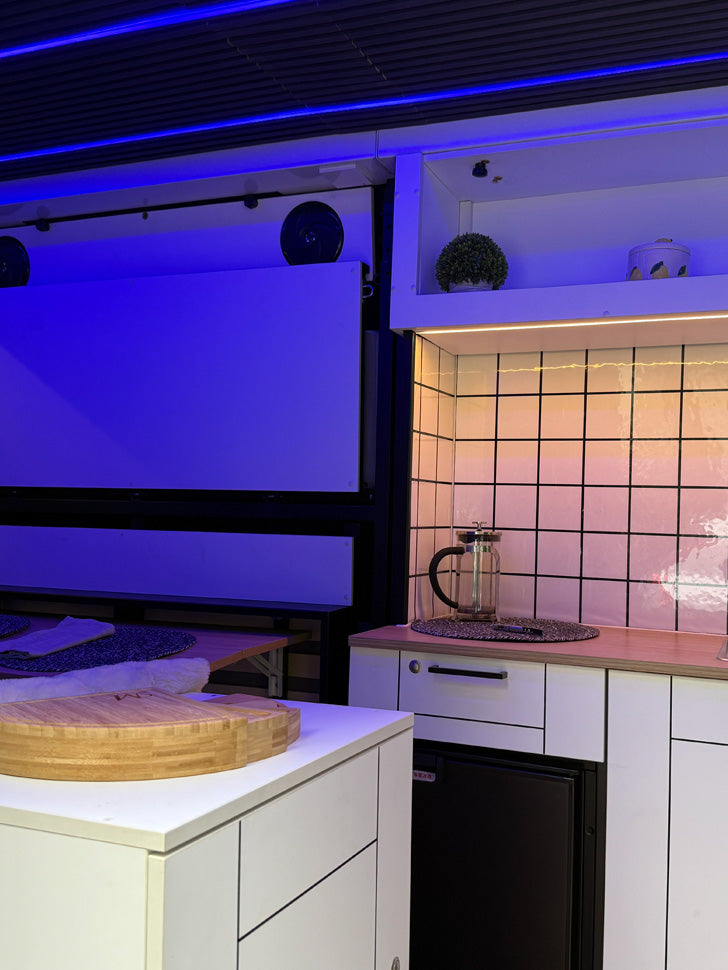

Kitchen Module
Compact countertop, sink with fresh and grey water tanks, and space for a compact refrigerator.
Pre-Wired Electrical
Professionally designed wiring system ready for lighting, USB charging, and small appliances. No wiring required on your end.
LED Lighting
Full interior LED lighting system designed by Ellumiglow, installed throughout the cabin and ready to use.
Luxury Vinyl Flooring
Pre-installed premium LVP flooring. Durable, easy to clean, and finished to a high standard throughout.
Insulated Walls + Ceiling
High-density extruded polystyrene in floors and ceilings. Heat-resistant side wall material to stabilize interior temperature.
Cabinetry + Storage
Built-in overhead and under-bench storage throughout the cabin. Designed to maximize every inch without sacrificing livability.
Safety Equipment
Dry powder fire extinguisher and carbon monoxide alarm included. All materials are fire retardant rated.
Installation Sleds
Two included sleds allow you to roll the kit into the van with minimal effort. No lifting required for the install.
Ram Promaster 159" WB Conversion Van Kit — Floor Plan (top view, approximate)
Kit Dimensions & Details
Options & Add-Ons
Select your add-ons when you place your deposit. All options are built and installed at the factory before shipping.
EcoFlow Power Station
Wall or 12V car charger compatible. Powers lighting, devices, and small appliances via built-in inverter. Go off-grid the day your kit arrives.
Shower Module
Integrated shower box with dedicated fresh and grey water tanks. Installs as part of the main kit structure.
Bunk Bed
Mounted above the main sleeping area. Short WB models: 47" x 34" with guardrail, suited for children. Long WB models (Sprinter 170" and Promaster 159"): 70" x 34", workable for an adult. Available on select models only. The space converts to storage on kits without the bunk option.
Sliding Glass Doors
Available for side and rear entrances. Provides privacy, insulation, and security. Default option is plexiglass accordion doors (removable).
Magnetic Insulated Window Covers
Custom-fitted magnetic covers for front and rear windows. Can stabilize interior temperature by up to 20 degrees. Highly recommended for year-round use.
Portland, OR Installation Service
Local to the Portland metro? We can install the kit in your van for you. Contact us for pricing and scheduling.
All add-on pricing is confirmed at time of deposit. Contact us to discuss your exact configuration before ordering.
From Driveway to Camp in Under an Hour
No carpentry. No special tools. No professional installer needed. Here is exactly how it works.
Install video coming soon. Check back or contact us to see it first.
Prepare Your Van Floor
A flat plywood base (or factory-installed floor) is all you need. Some newer vans have a solid floor already installed.
Position on the Sled
Place the kit on the two included installation sleds behind your van. No lifting required for this step.
Slide Into the Van
Push the two kit pieces into the van interior. Having a second person makes this faster, but it is manageable solo.
Expand and Secure
The kit expands outward to the van walls for a flush fit. Secure with the included mounting hardware.
Connect and Go
Plug in the electrical connection, fill your water tanks, and you are ready. From unboxing to camping in under an hour.
How Ordering Works
Every kit is made to order. Here is exactly what to expect from deposit to driveway.
Place Your $5,000 Deposit
Your deposit confirms your van model and add-on selections and starts the production queue. We will confirm receipt and your expected build window within one business day.
We Build Your Kit
Production typically takes 6 to 12 weeks. Your kit is built to order, inspected, and carefully packed for ground freight shipping.
Pay Balance at Ship
The remaining balance is due when your kit completes production and is ready to ship. We will notify you in advance so there are no surprises.
Delivery to Your Driveway
Free ground freight to the lower 48 states. Typical transit time is 1 to 2 weeks. You will receive tracking information as soon as your kit ships.
Questions Before You Commit?
We are a small, founder-operated team and are happy to walk you through any part of the process before you place a deposit. There is no pressure and no sales cycle. Reach out and get a direct answer from the people who build these kits.
Talk to Us Before You Order →Steel frame and structural components
Electrical, plumbing, and all other parts
Ground freight to the lower 48 states
For full warranty terms, email us before placing your order.
Interior lighting designed by Ellumiglow • Specialty LED and electroluminescent lighting specialists
FAQ
Do I need to modify my van before the kit arrives?
The only preparation needed is a flat floor surface inside your van. This can be as simple as a cut-to-fit plywood sheet. Some newer van models come with a solid factory floor that works perfectly without any modification. We recommend adding your own van wall insulation before delivery if you want additional thermal performance.
Can I install the kit by myself?
The kit is designed for solo install. Each of the two pieces weighs approximately 300 to 500 lbs, so having a second person for the push-in step makes it easier and faster. Once inside the van, everything else is straightforward. If you are near Portland, OR, we also offer professional installation for an additional fee.
Does the kit include a heating system?
The kit does not include an internal heater, but it is designed to work with portable electric heaters plugged into the optional EcoFlow battery or your van's power system. The high-density insulation and air gap between the kit walls and the van's metal body means the interior stays noticeably warmer than outside. Most customers find a small electric heater more than sufficient.
Can the kit be removed from the van?
Yes. The kit is not permanently attached to the van structure. It is secured with mounting hardware and can be removed if needed. This also means the van can be returned to its original cargo configuration if your needs change.
What happens after I place the deposit?
We confirm your order and add-on selections within one business day and add you to the production queue. You will receive updates at key build milestones. When production is complete, we contact you for the remaining balance before shipping. Ground freight typically takes 1 to 2 weeks after it ships.
What if I have a question after delivery?
Every kit comes with a detailed video walkthrough of all systems and features. Our team is available by email and phone for any questions that come up after delivery. We are a small team and you will get a direct answer, not a support ticket queue.
Can I customize the layout or finishes?
The core layout is fixed, but we offer a range of finish options and add-ons. If you have a specific customization in mind that goes beyond the standard options, contact us before placing your deposit and we will let you know what is possible.
Ready to Transform Your Van?
A $5,000 deposit starts production. The rest is due when your kit is finished and ready to ship. No surprises, no long waits, no guesswork.
